PORTABLE PIPE HANGERS (CANADA)

PHP PRODUCTS
Typical Applications
click image to enlarge
pp10rg1 pp10rg2 pp10rg3 pp10rg4 pp10rg5 pp10rg6 pp10c1 pp10c2 pp10c3 pp10h1

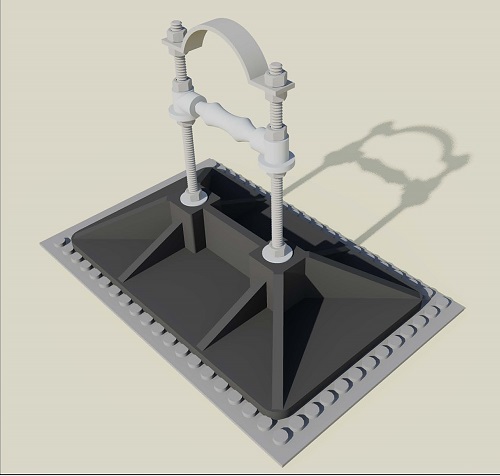

PP10-R Pipe Support

Approved by TSSA Fuel Safety Division
PP10 Pipe Support c/with Roller or Strut, or Custom configuration. Zero Roof Penetration ®.
PP10R
  • A stable rooftop system offering maximum load distribution while extending roof life. Approved by TSSA Fuel Safety Division.
  • Economical to install. Your people can do it themselves!
  • Customized to match your roof type. Should you need change, the system is easy to expand or reconfigure.
  • Long lasting and cost effective.
SCALES
Available Configurations:
click image to enlarge
mod1 mod2


Installation Procedure:

The PP10 with Roller Pipe Support is designed to support gas lines up to 3 1/2” O.D., not exceeding 10” in height, or higher (custom configuration).

May be also equipped with Channel (Part Number is PP10-C), and Pipe Clamps.

PHP Item # Description Material of Base Base Size Frame Weight
PP10-R The PP10 with Roller
is designed to support
conduit and drain lines
up to 3 ½” O.D.,
not exceeding 12” in height
High Density
Polyethylene Plastics
and other additives
for UV Protection
10”x16”x
3"
HDG Strut,
Threaded Rods,
Nuts and Washers
8.95 lbs
(7.4 lbs
without
walkpad)
