PORTABLE PIPE HANGERS (CANADA)

PHP PRODUCTS

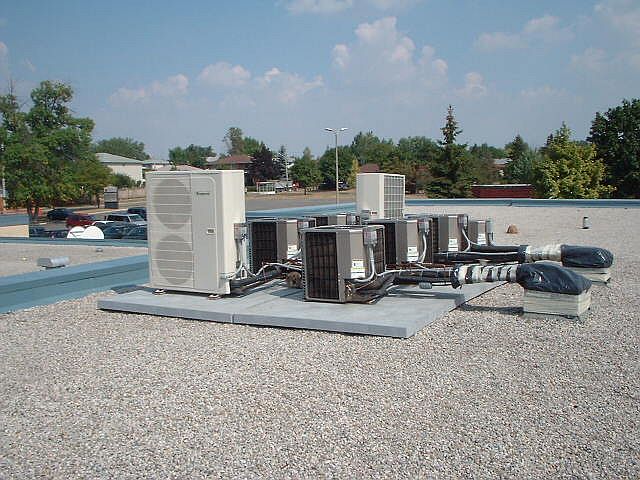

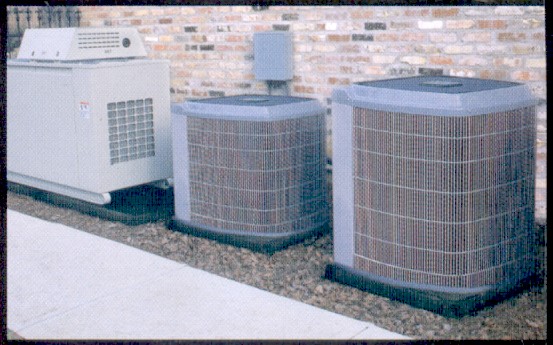

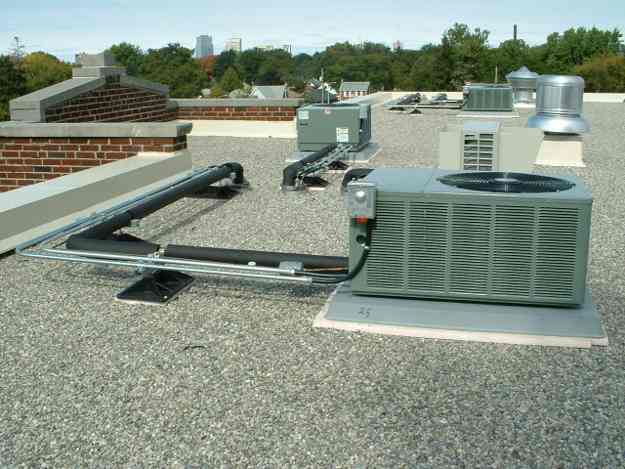

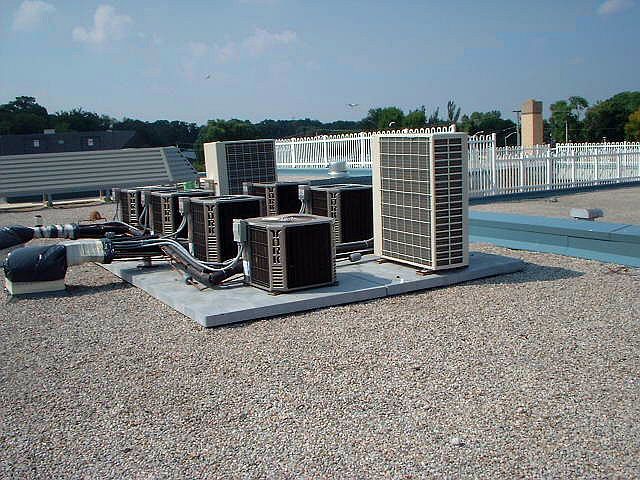

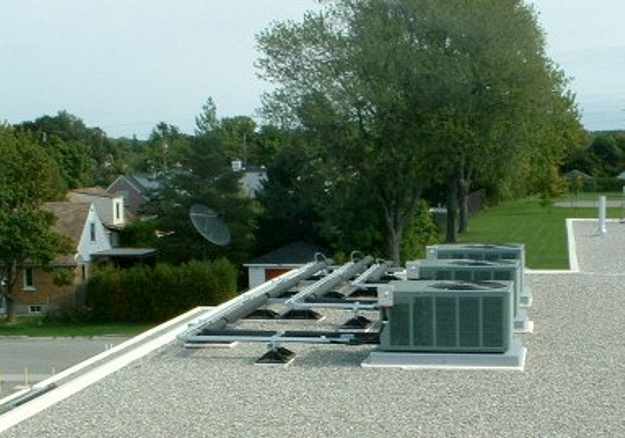

Typical Applications
click image to enlarge
Cond. Pads Cond. Pads Cond. Pads Cond. Pads Cond. Pads Cond. Pads

PHP Condenser Pads

Rooftop Condenser Pads: Zero Roof Penetration ®. Resistant to impact, UV degradation and weathering. Variety of Sizes To Fit Your Needs.
Duct Sprts
  • Injection moulded from high impact polyolefin with UV inhibitors making them easy to handle, yet durable and strong.
  • Lightweight - requires no additional equipment for moving or handling. One person can install a pad in less than 2 minutes.
  • Resistant to impact, UV degradation and weathering and will not crack, flake or warp.

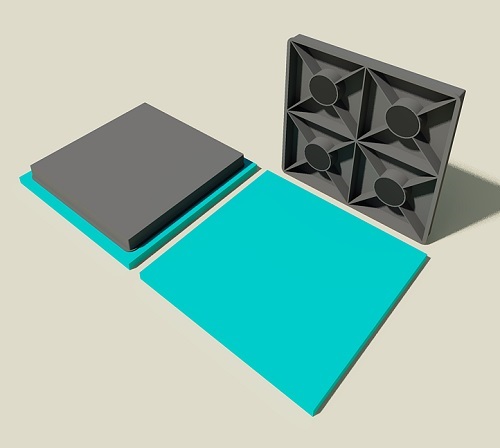

  • Support ribs, stabilization pads and flanges on underside.
  • Suggested application instead of traditionally used wood-sleepers.
Available Sizes:

PAD HEIGHT: 3"
Part No Size Pallet Qty
ACP2424-3 24" x 24" 30
ACP2436-3 24" x 36" 30
ACP2442-3 24" x 42" 15
ACP2448-3 24" x 48" 15
ACP3024-3 30" x 24" 30
ACP3030-3 30" x 30" 15
ACP3036-3 30" x 36" 15
ACP3040-3 30" x 40" 15
ACP3042-3 30" x 42" 15
ACP3333-3 33" x 33" 15
ACP3338-3 33" x 38" 15
ACP3345-3 33" x 45" 15
ACP3348-3 33" x 48" 15
ACP3636-3 36" x 36" 15
ACP3642-3 36" x 42" 15
ACP3648-3 36" x 48" 15
ACP24RD-3 24" round 15
ACP30RD-3 30" round 15
ACP32RD-3 32" round 15
ACP36RD-3 36" round 15
ACP42RD-3 42" round 15
ACP5042-3 50" x 42" 11
ACP5050-3 50" x 50" 11
ACP5060-3 50" x 60" 11
ACP5070-3 50" x 70" 11

PAD HEIGHT: 2"
Part No Size Pallet Qty
ACP1836-2 18" x 36" 40
ACP2424-2 24" x 24" 40
ACP2436-2 24" x 36" 40
ACP2442-2 24" x 42" 20
ACP2448-2 24" x 48" 20
ACP3024-2 30" x 24" 40
ACP3030-2 30" x 30" 20
ACP3036-2 30" x 36" 20
ACP3040-2 30" x 40" 20
ACP3042-2 30" x 42" 20
ACP3333-2 33" x 33" 20
ACP3338-2 33" x 38" 20
ACP3345-2 33" x 45" 20
ACP3348-2 33" x 48" 20
ACP3636-2 36" x 36" 20
ACP3642-2 36" x 42" 20
ACP3648-2 36" x 48" 20

Rooftop Condenser Pads:, for built-up and single-ply roofs. Lightweight and resistant to impact, UV degradation and weathering.

Specifically designed to be installed directly on the roof without roof penetration, flashing or damage to the roofing material.
