PORTABLE PIPE HANGERS (CANADA)

PHP PRODUCTS
Typical Applications
click image to enlarge
Access STAIRS Access STAIRS Access STAIRS Access STAIRS Access STAIRS Access STAIRS Access STAIRS Access STAIRS

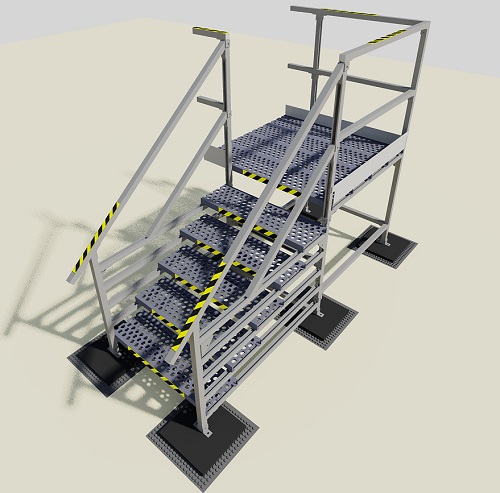

Access Stairs

Access Stairs: Zero Roof Penetration ®, Straight or Side Access, Custom Design. Seismic Applications available.
accessStairs
  • A stable rooftop system offering maximum load distribution while extending roof life.
  • Economical to install. Your people can do it themselves! Pre-assembled substractures.
  • Available with galvanized slip-resistant surface
  • Customized to match your roof type. Should you need change, the system is easy to expand or reconfigure.
  • Long lasting and cost effective.
  • Seismic Applications available.
Available Configurations: Straight or Side Access. Custom Design.
click image to enlarge
PLmod1
Installation Procedure:

PHP Rooftop Access Stairs, Straight or Side Access, with or without Handrails and Toe Board, for built-up, single-ply and sloped, standing seam metal roofs.

PHP Rooftop Access Stairs are specifically designed to be installed directly on the roof without roof penetration, flashing or damage to the roofing material.

The system shall be designed to support all weight and equipment as required.

The system shall consist of the following:

Bases Frame Platform Handrails Clamping Hardware
High Density
Polyethylene Plastics
and other additives
for UV Protection. 		12 gauge, 1 5/8" strut
G-5812, or approved equal,
12 gauge back-to-back strut
G-1012A, or approved equal. 		13 gauge Shur Grip
safety grating planks, or approved equal 		12 gauge, 1 5/8" strut
G-5812, or approved equal 		Electro-Plated Bolts,
Nuts and Washers
