PORTABLE PIPE HANGERS (CANADA)

PHP PRODUCTS
Typical Applications
click image to enlarge
ladderMODIF ladderMODIF ladderMODIF ladderMODIF ladderMODIF ladderMODIF ladderMODIF ladderMODIF ladderMODIF ladderMODIF

Modification Of Existing Wall Ladders

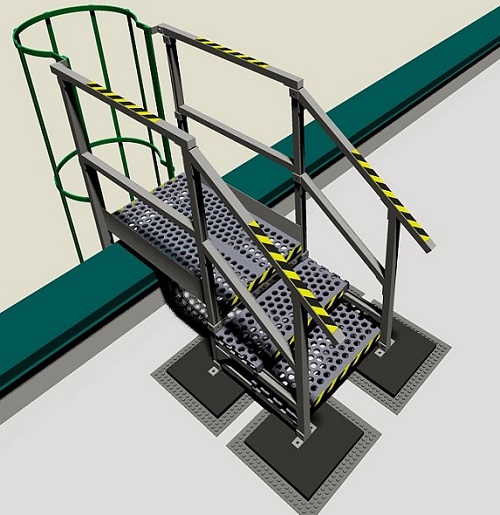

Modification Of Existing Wall Ladders: for vertical ladders not in compliance with "Fixed Access Ladders: Engineering Data Sheet 2–04". Custom Design. Zero Roof Penetration ®.
Service Platf
Modification to meet requirements (Fixed Access Ladders: Engineering Data Sheet 2–04):
  • The top of the uppermost rung to be level with the top of the access/egress level
  • Rungs to have a non-slip surface
  • If the distance from the top of a parapet to the roof-top exceeds one rung-space (i.e, max. 300 mm) a means of climbing to and from the top of the parapet to be provided.
  • Safety Cage to be provided where the top of the ladder is greater than 5 metres above ground level or roof and where there is a danger of a worker falling from the ladder to the ground level or floor, even if the length of the climb is less than 5 metres.
  • Maximum spacing of attachment points to be 3 m.
  • Attachment and anchor bolts to have a minimum diameter of 12 mm.
  • Platform to be provided along a ladder where worker activity is anticipated and where lack of such a platform will incur significant additional hazard to workers
  • Prevention of unauthorized access
Available Configurations:
Custom Design to modify any not in compliance with Fixed Access Ladders: Engineering Data Sheet 2–04).
click image to enlarge
PLmod1


Examples of Ladders not in compliance with Fixed Access Ladders: Engineering Data Sheet 2–04).
click image to enlarge
notModif notModif


Installation Procedure:

Modification Of Existing Wall Ladders, for built-up, single-ply and sloped, standing seam metal roofs to be in compliance with Fixed Access Ladders: Engineering Data Sheet 2–04)

No roof penetration, flashing or damage to the roofing material.

The system shall be designed to support all weight and equipment as required.

The system shall consist of the following:

Bases Frame Platform Handrails Clamping Hardware
High Density
Polyethylene Plastics
and other additives
for UV Protection.
12 gauge, 1 5/8" strut
G-5812, or approved equal,
12 gauge back-to-back strut
G-1012A, or approved equal.
13 gauge Shur Grip
safety grating planks, or approved equal.
12 gauge, 1 5/8" strut
G-5812, or approved equal.
Electro-Plated Bolts,
Nuts and Washers
