PORTABLE PIPE HANGERS (CANADA)

PHP PRODUCTS
Typical Applications
click image to enlarge

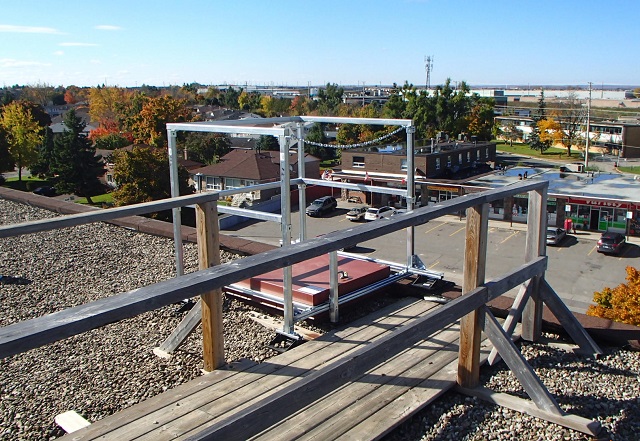

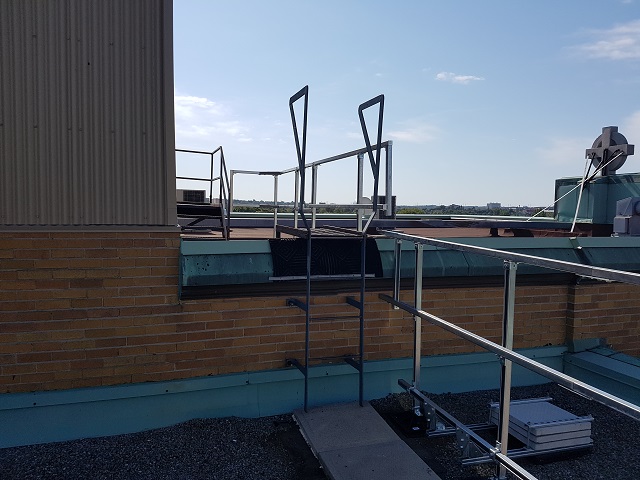

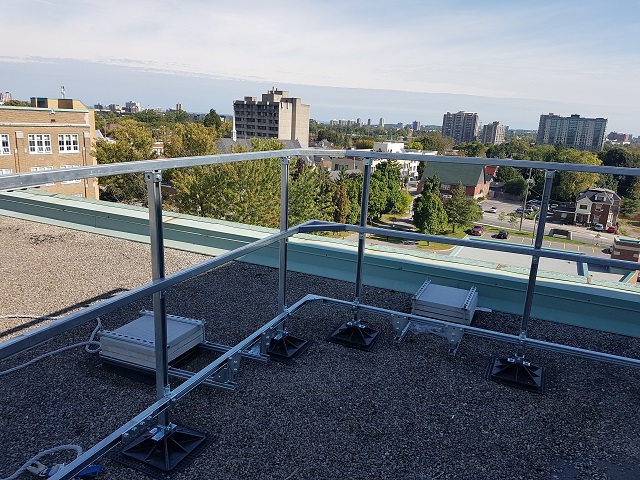

other other other other other other other other other other

PHP Safety Railing

PHP Safety Railing: Ballasted, Parapet-Mounted, Installed on Platforms and Walkways, around Roof Hatches. Zero Roof Penetration ®.
click image to enlarge

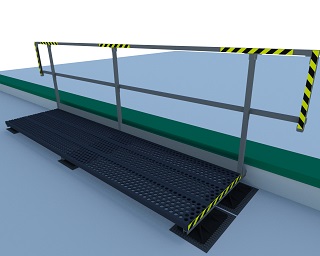

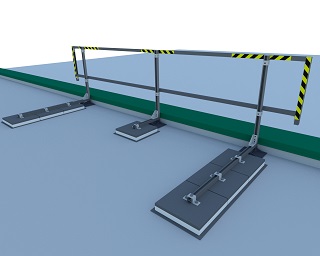

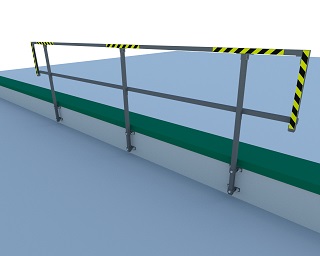

sRail_1 sRail_2 sRail_3
  • A stable rooftop system offering maximum load distribution while extending roof life.
  • Economical to install. Your people can do it themselves!
  • Customized to match your roof type. Should you need change, the system is easy to expand or reconfigure.
  • Long lasting and cost effective.
Installation Procedure:

PHP Safety Railing: Ballasted, Parapet-Mounted, Installed on Platforms and Walkways, Custom - for single-ply and sloped, standing seam metal roofs.

PHP Products are specifically designed to be installed directly on the roof without roof penetration, flashing or damage to the roofing material.

The system shall be designed to support all weight and equipment as required.

The system shall consist of the following:

Bases Frame Platform Clamping Hardware
High Density
Polyethylene Plastics
and other additives
for UV Protection.		 12 gauge, 1 5/8" HDG
3-Hole or Solid strut,
or approved equal,
13 gauge Shur Grip
safety grating planks
or approved equal		 13 gauge Shur Grip
safety grating planks, or approved equal 		HDG or Electro-Plated
Bolts, Nuts and Washers
