PHP-D Duct Supports

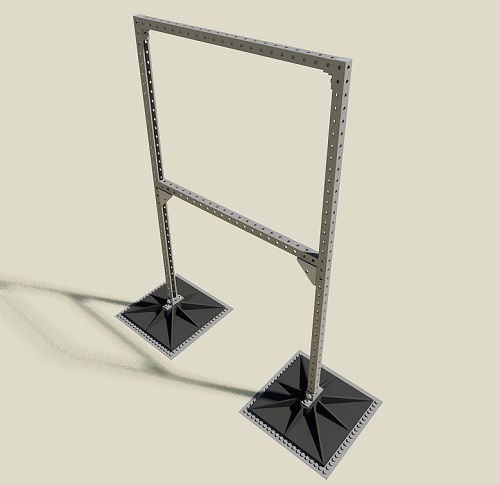

Rooftop PHP-D Duct Supports: Type 'G' (Goal Post), Type 'E' (Encapsulated), Custom. Zero Roof Penetration ®.
Duct Sprts
  • A stable rooftop system offering maximum load distribution while extending roof life.
  • Economical to install. Your people can do it themselves!
  • Customized to match your roof type. Should you need change, the system is easy to expand or reconfigure.
  • Long lasting and cost effective.
Available Configurations:
click image to enlarge
ductSmod1 ductSmod2 ductSmod3
Installation Procedure:

PHP PHP-D Duct Supports:, Type 'G' (Goal Post), Type 'E' (Encapsulated), or Custom, for built-up, single-ply and sloped, standing seam metal roofs.

PHP PHP-D Duct Supports are specifically designed to be installed directly on the roof without roof penetration, flashing or damage to the roofing material.

The system shall be designed to support all weight and equipment as required.

The system shall consist of the following:

Bases Frame Clamping Hardware
High Density
Polyethylene Plastics
and other additives
for UV Protection.
12 gauge, 1 5/8" HDG
3-Hole strut
or approved equal,
HDG or Electro-Plated
Bolts, Nuts and Washers
