PHP Projects: Pipe Support Systems

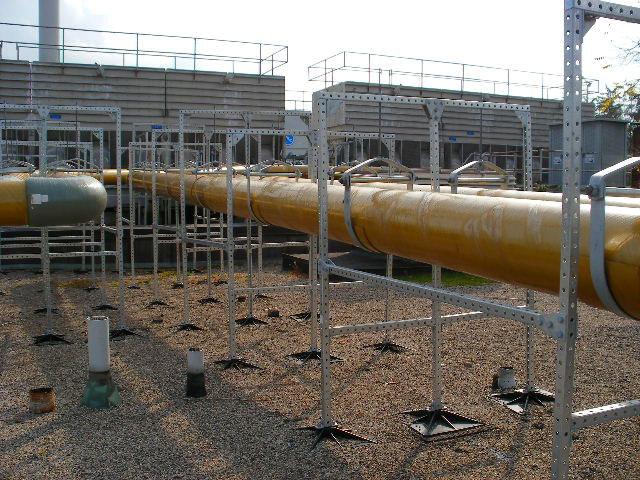

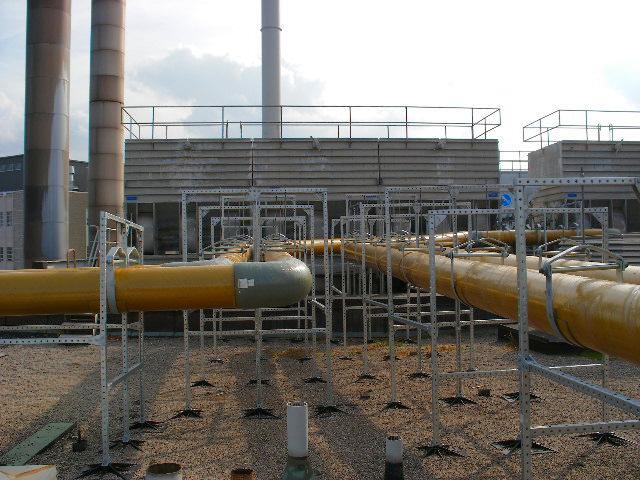

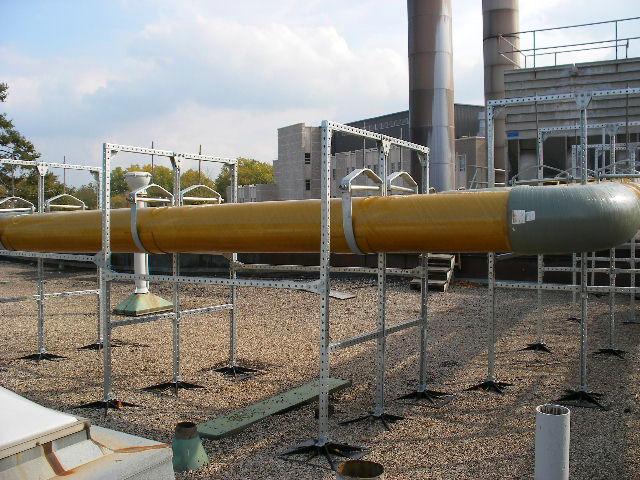

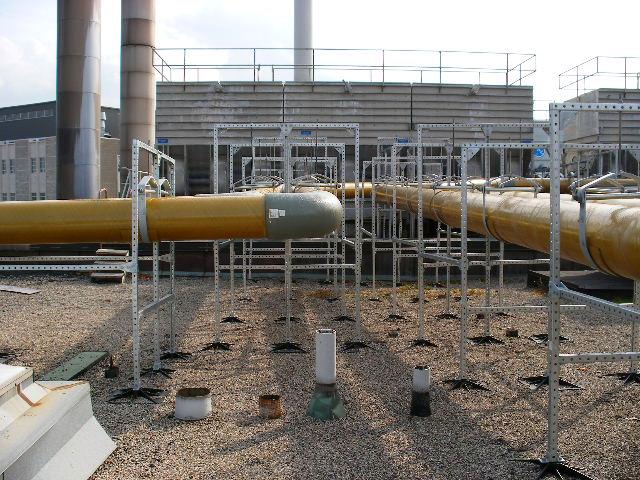

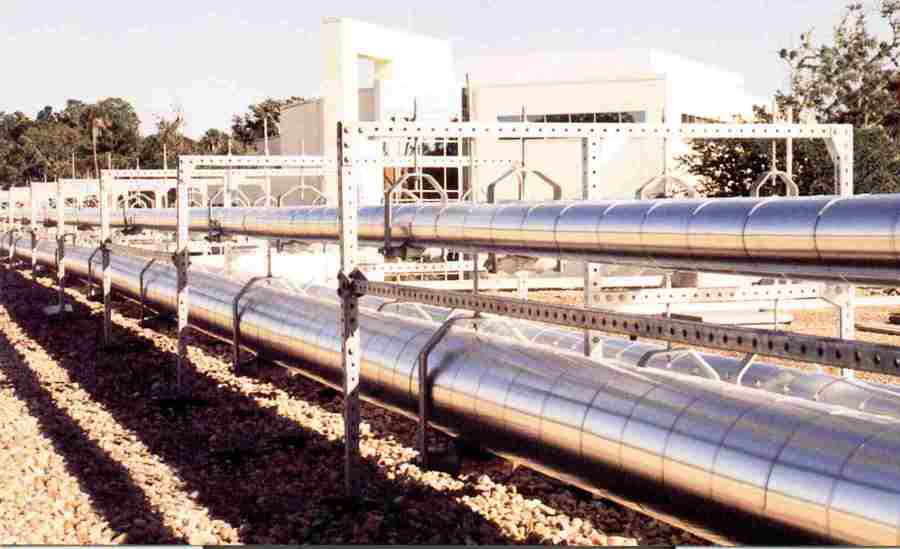

Rooftop FRP(fiberglass) 14"NPS Chilled Water Lines
@ University of Western Ontario-CPS Upgrade, Phase 2, spring 2007
pr5_01 pr5_02 pr5_03 pr5_04

Rooftop 6" NPSD with 2 1/2" Thk. Insulation Chilled Water Lines located at 54" - Bottom of PIpe Elevation
@ Humber College-Etobicoke,Ont.-Chiller Upgrade
pr5_05 pr5_06 pr5_07 pr5_08

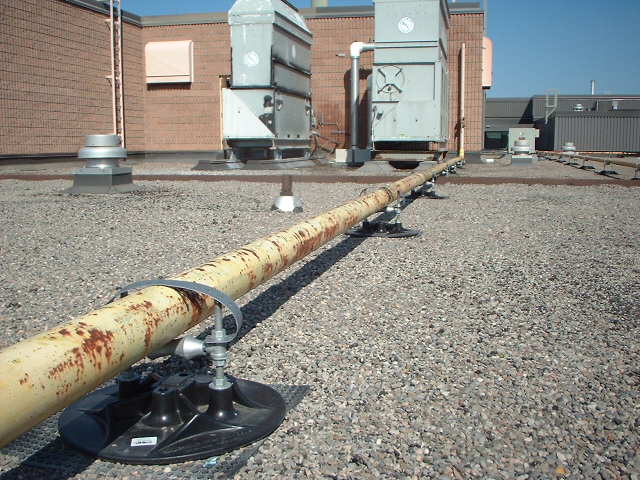

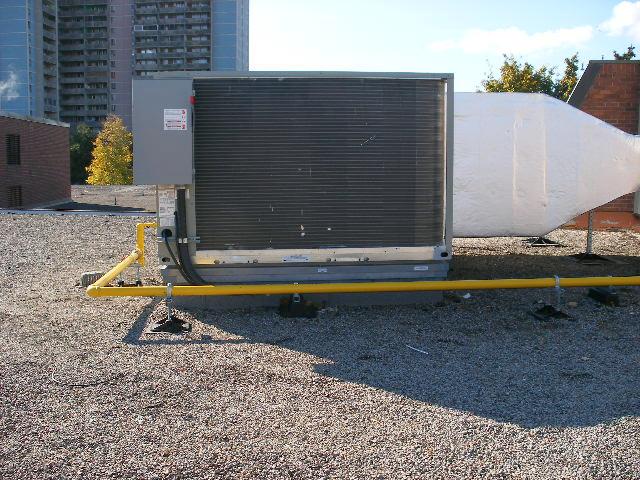

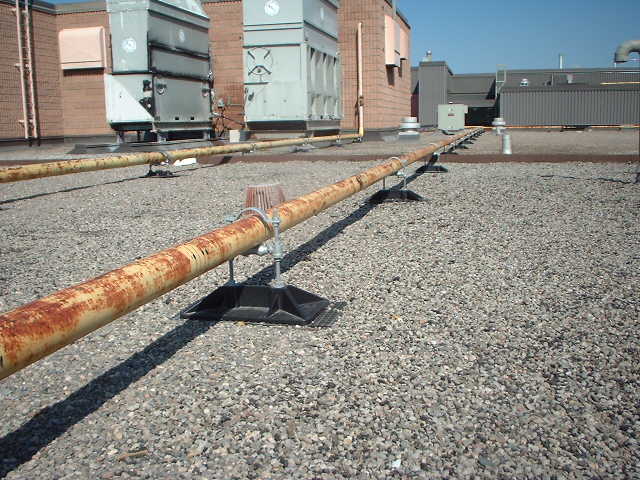

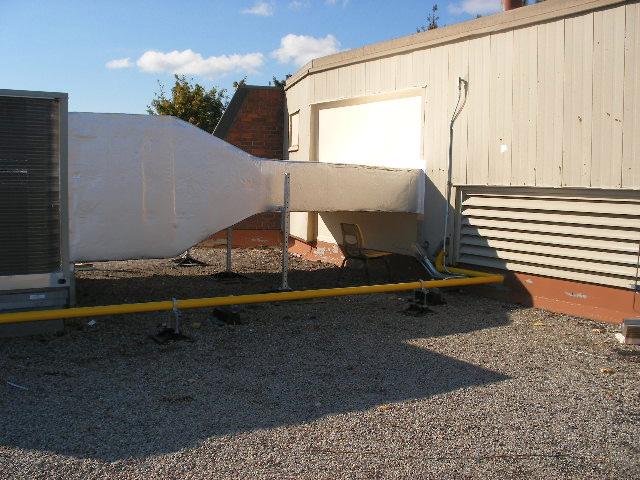

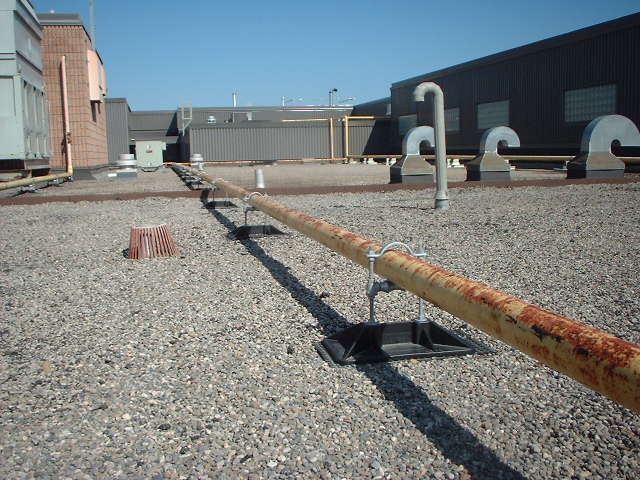

Rooftop gas line supports w/zero roof penertation-with P/N: SS-8C
HVAC Upgrade @ Robert Service P.S.-TDSB
pr5_09 pr5_10 pr5_11 pr5_12

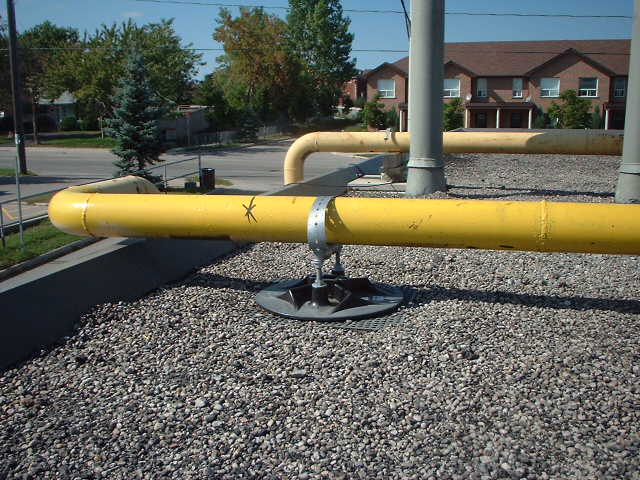

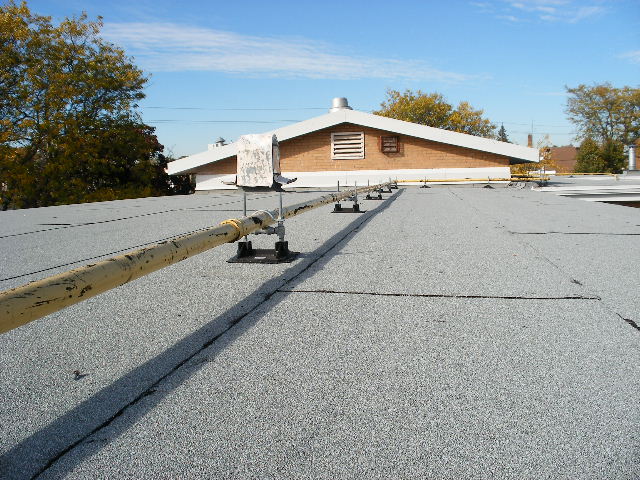

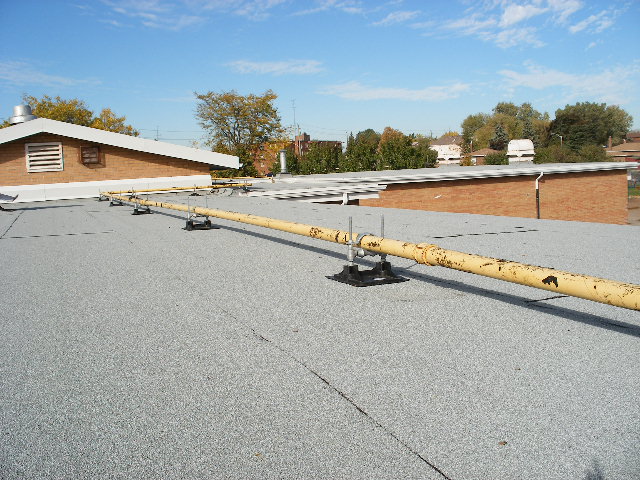

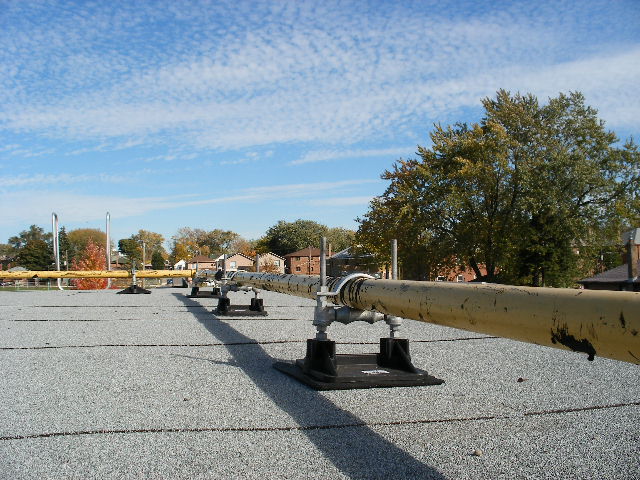

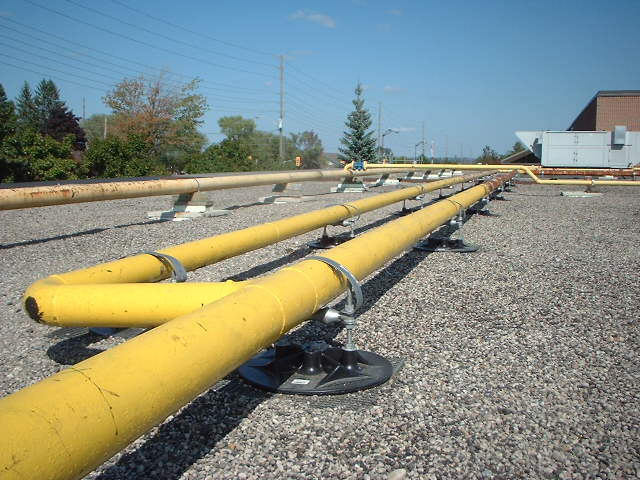

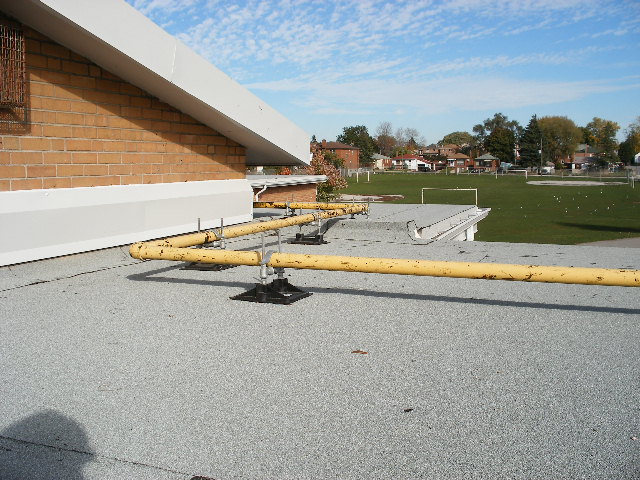

Rooftop Gas Lines supports with Super Sleeper with Roller, Pipe Guide and Rooftop Walkpad-P/N: SS-8R
@ J.G.Workman Public School-Toronto District School Board
pr5_13 pr5_14 pr5_15 pr5_16

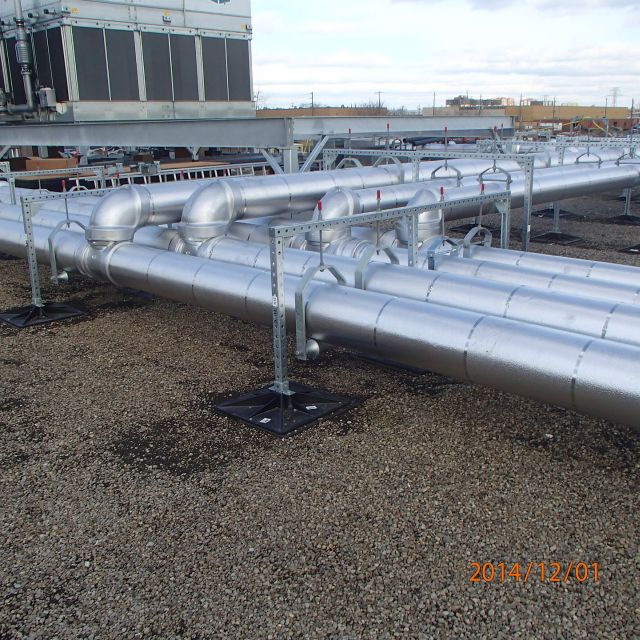

Rooftop Chilled Water Lines supports
@ Toronto, Ont., Nov. 2014
pr4_21

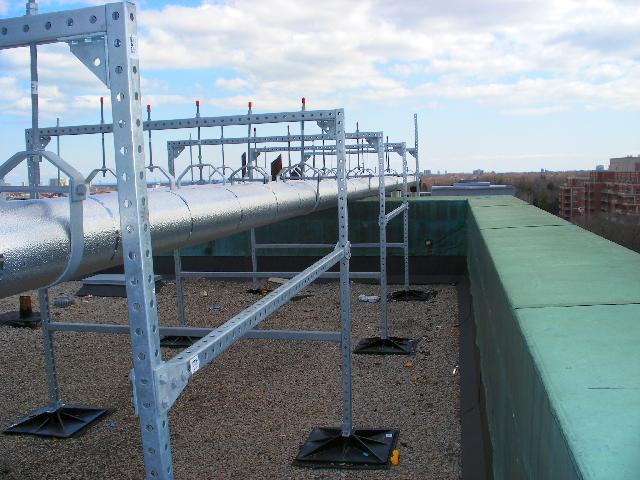

Rooftop multi-line pipe supports - PSE-Custom
@ Sunnybrook Hospital,C-Wing
pr5_17 pr5_18 pr5_19 pr5_20 pr5_21

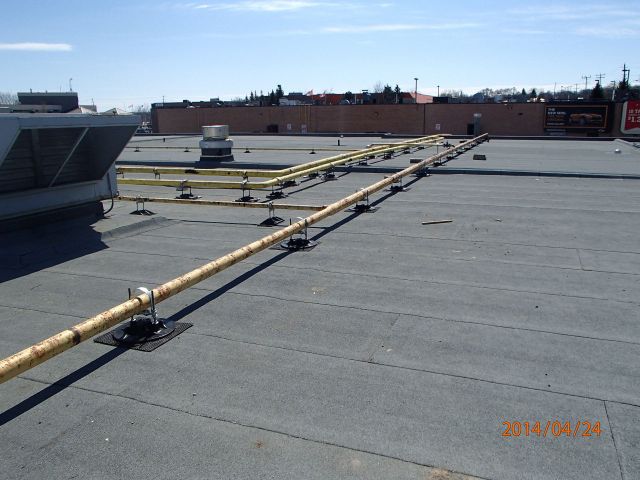

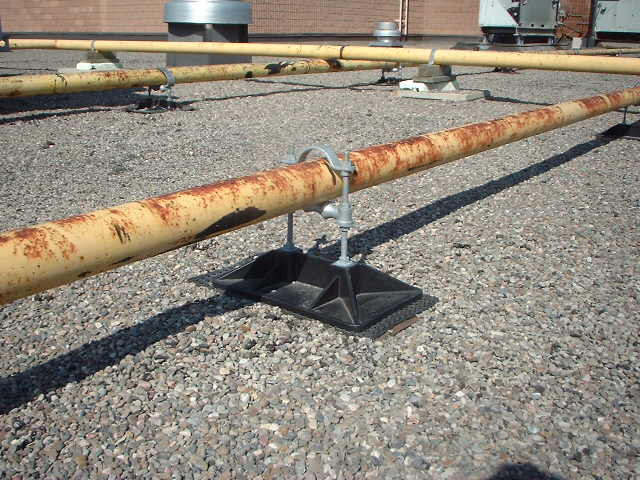

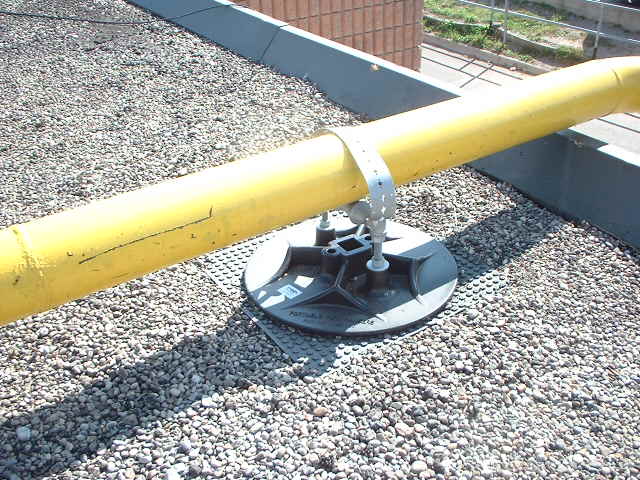

Part No. PP10 with Roller, Pipe Guide and Walkpad
@ St.Joseph Catholic High School, Barrie, Ont.
pr5_22 pr5_23 pr5_24 pr5_25

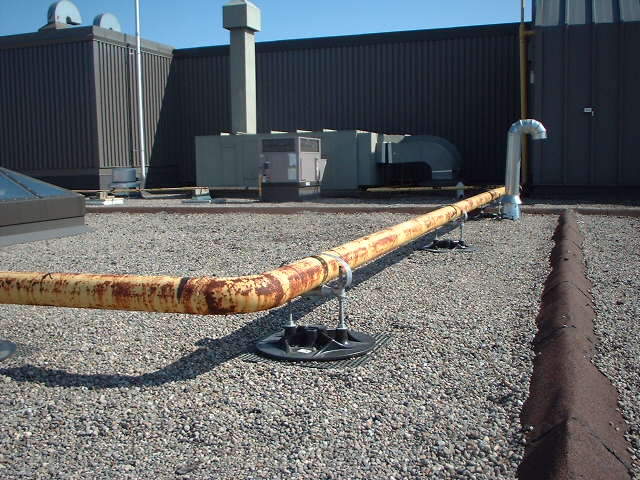

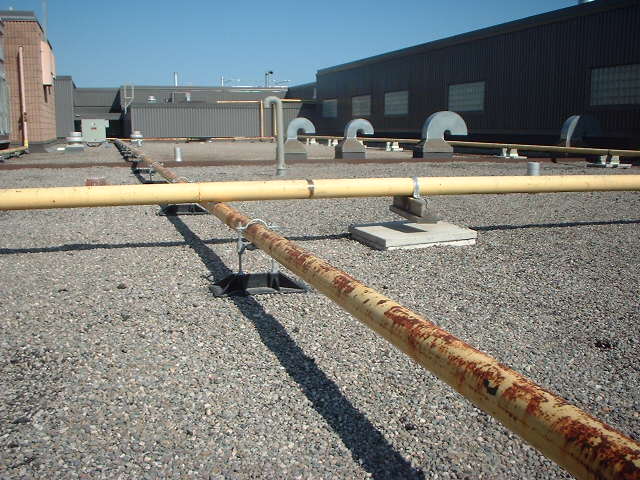

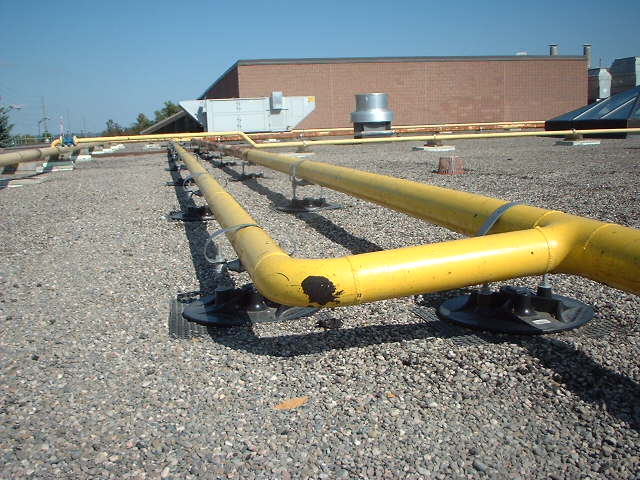

Part No. RB18 with Roller,Pipe Guide and Walkpad
@ St.Joseph Catholic High School, Barrie, Ont.
pr5_22 pr5_23 pr5_24 pr5_25 pr5_26 pr5_27 pr5_28

PP10 w/ Roller and Pipe Guide and Conduit Support:
Expanded Application
pr5_29

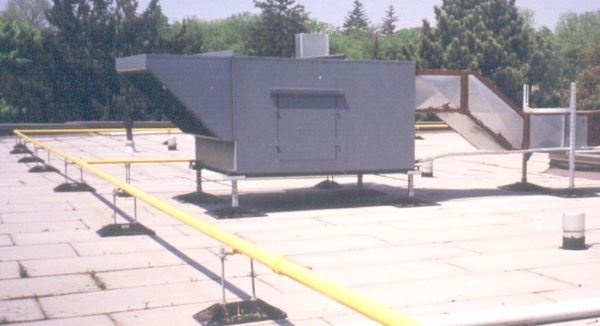

PP10 w/ Roller and Pipe Guide. Zero Penetration, Fully Height Adjustable
@ SWHA, Cambridge
pr5_30

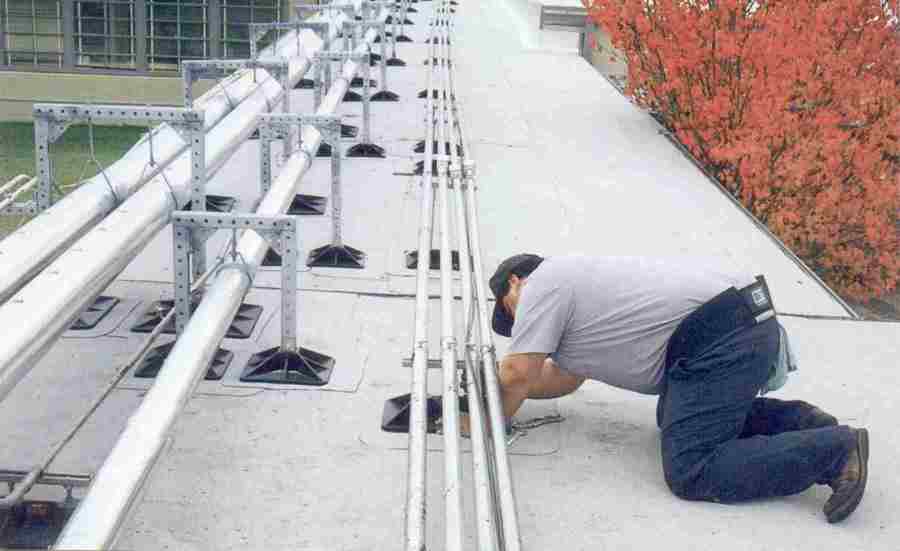

PHP roof pipe supports:
Industrial Plant Roof retrofit - Nov., 2012
pr5_31

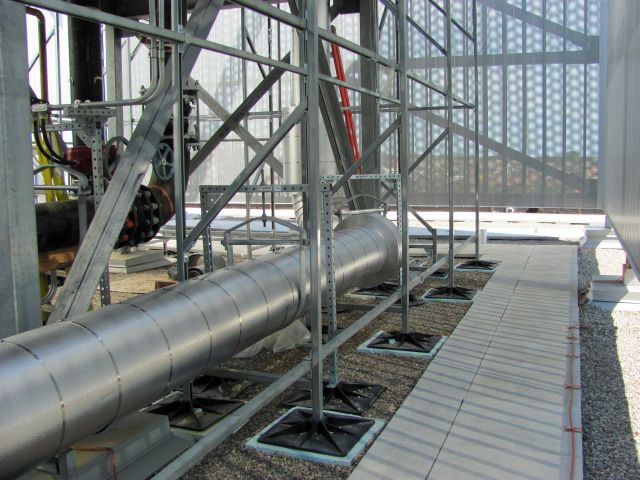

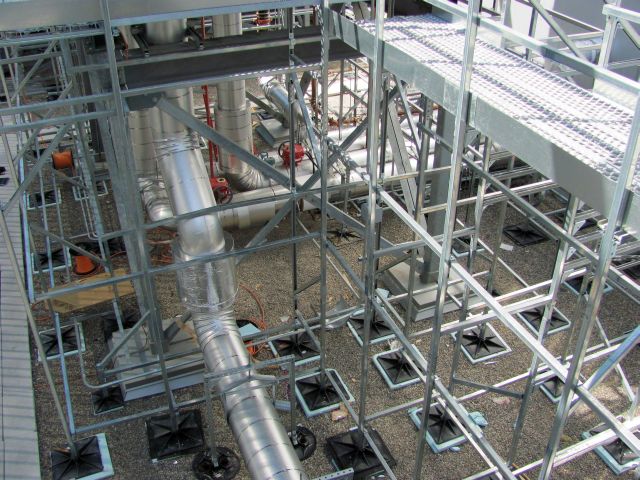

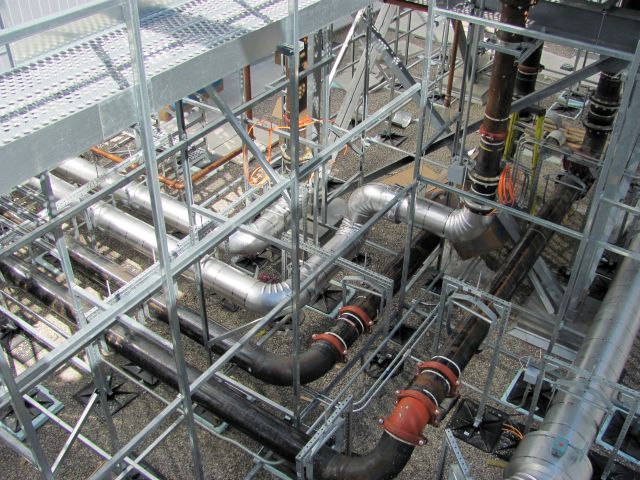

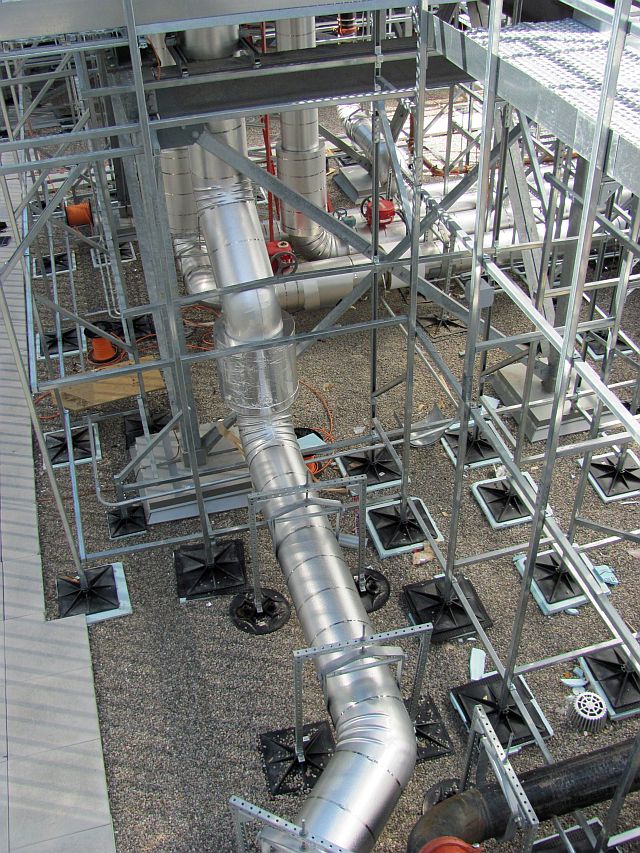

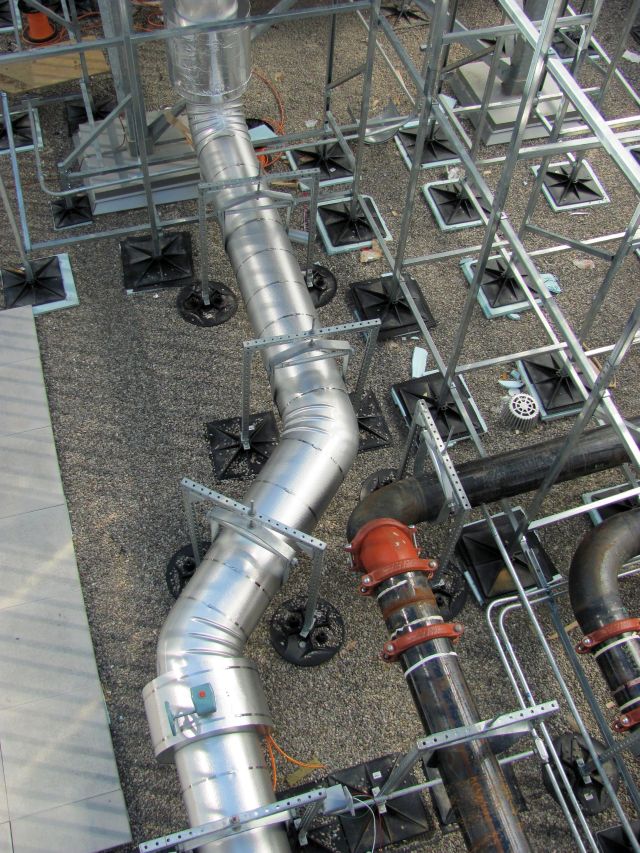

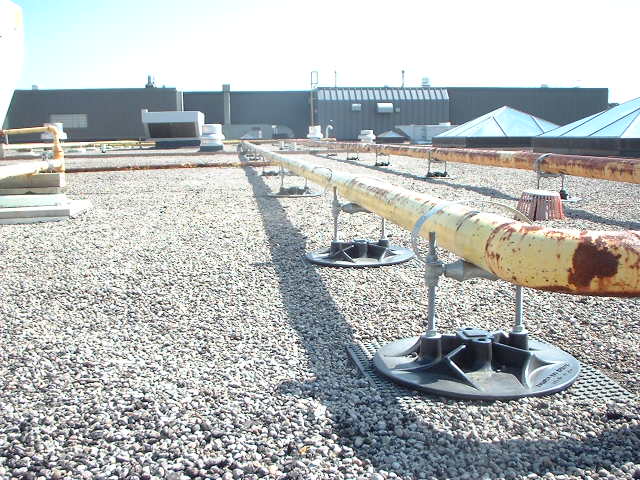

Rooftop CW lines supports at Cooling Towers Access Platforms
@ Barrie, ON, 2011
pr5_32 pr5_33 pr5_34 pr5_35 pr5_36 pr5_37

Rooftop Gas LIne supports with PHP, Height-Adjustable supports with HDG Roller Hangers and HDG Frames, with UV-res. support bases and rooftop drainage walkpad
@ Large Mail Distribution Facility, Eastern Canada
pr5_38

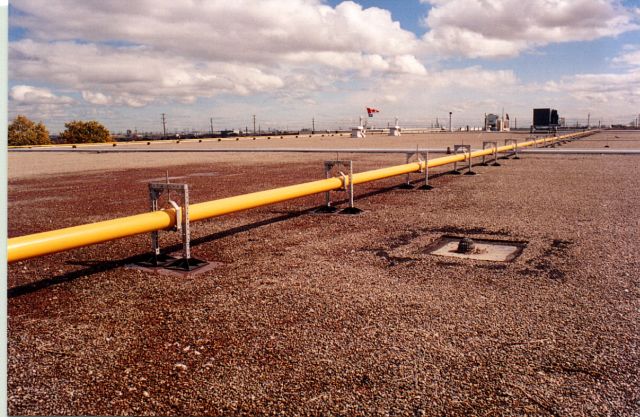

Rooftop Gas Lines supports installation
@ Major Mfg. Facility in Ontario - April, 2012
pr5_39 pr5_40

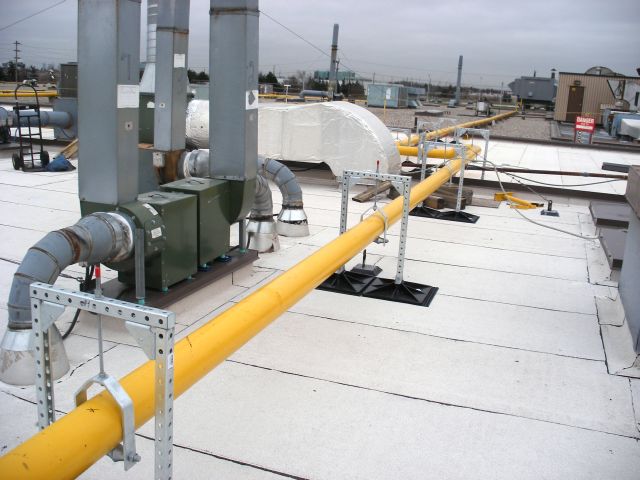

PHP rooftop pipe supports:
Industrial Plant Roof Retrofit - Nov. 2012
pr5_41 pr5_42 pr5_43 pr5_44

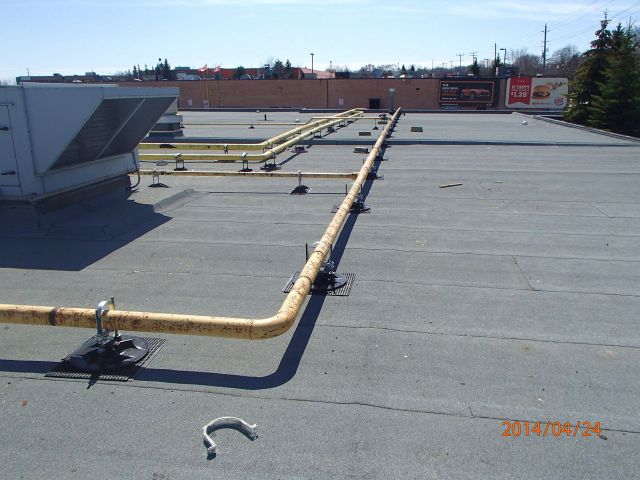

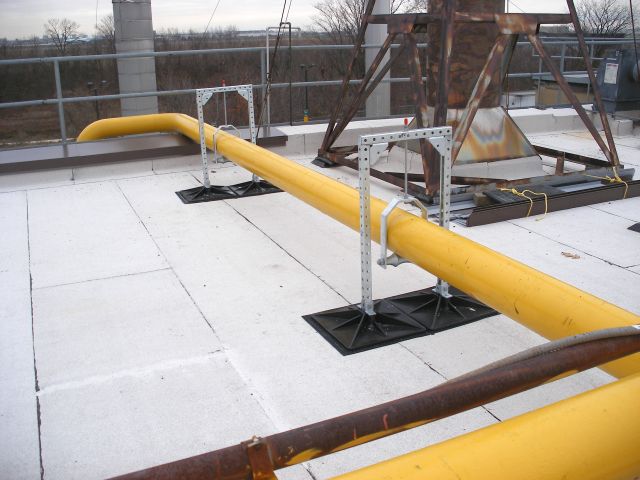

Rooftop Gas Line supports:
High School Re-Roofing project, April.2014
pr5_45 pr5_46 pr5_47

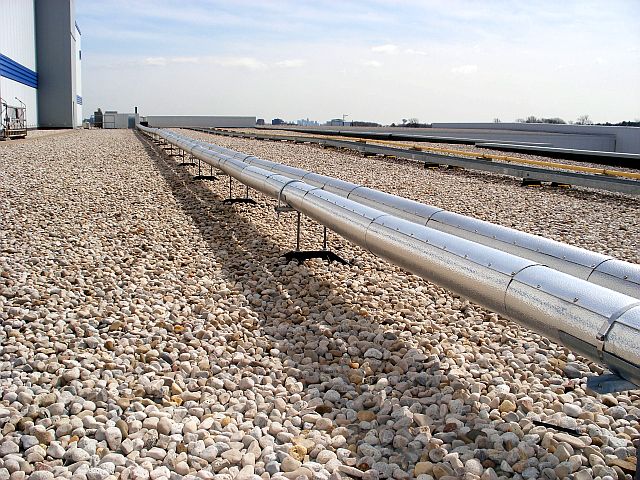

Roftop Refrigeration Lines
@ Cold Storage Faiclity -March, 2010.
pr5_48 pr5_49

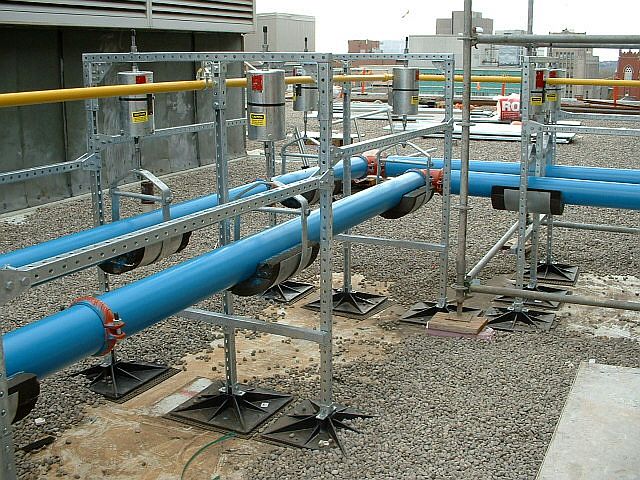

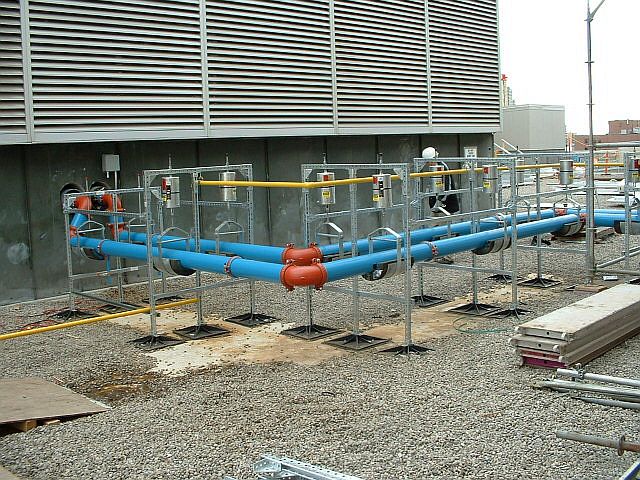

PHP pipe supports with variable spring hangers to suit pipe stress loads with calculated downward line movements:
GWL-Waterfall-HVAC Upgrade - Work in progress, Fall, 2010.
pr5_50 pr5_51

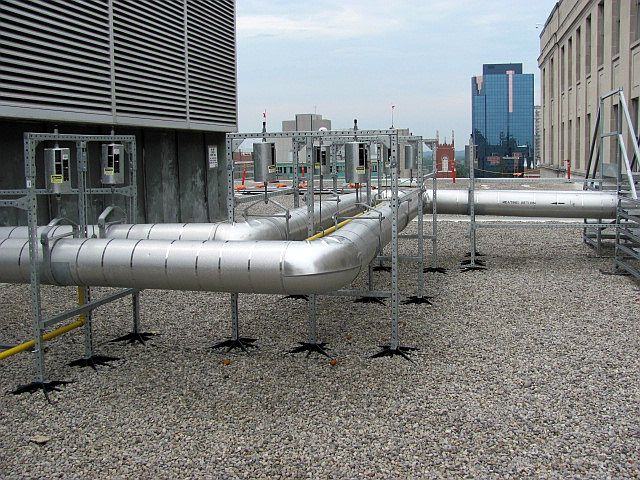

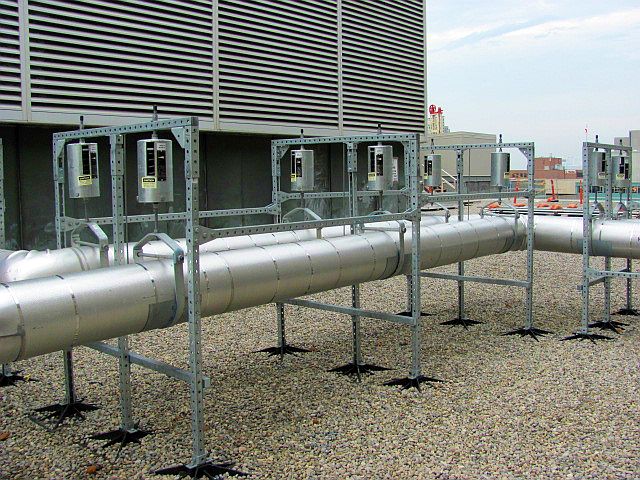

PHP pipe supports with variable spring hangers to suit pipe stress loads with calculated downward line movements
@ GWL, Waterfall, July, 2011
pr5_52 pr5_53 pr5_54

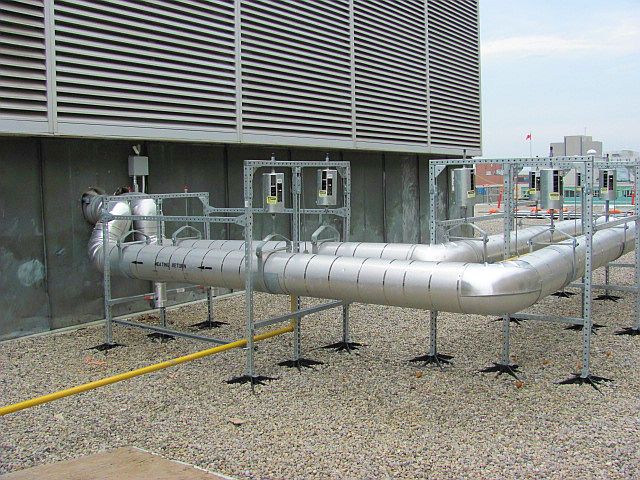

PSE - Custom Application:
Chilled Water Lines - Stacked Arrangement
@ GWL, Waterfall, July, 2011
pr5_55

PSE - Custom Application
@ GWL, Waterfall, July, 2011
pr5_56
